Project Overview
ISKAR Mühendislik Ltd. is a solutions provider and turnkey contractor for the materials handling machinery sector, with a special focus on slewing dock cranes. This turnkey floating dock crane project is being delivered for Shoft Shipyard, with Mazagon Dock (MDL) as end user.

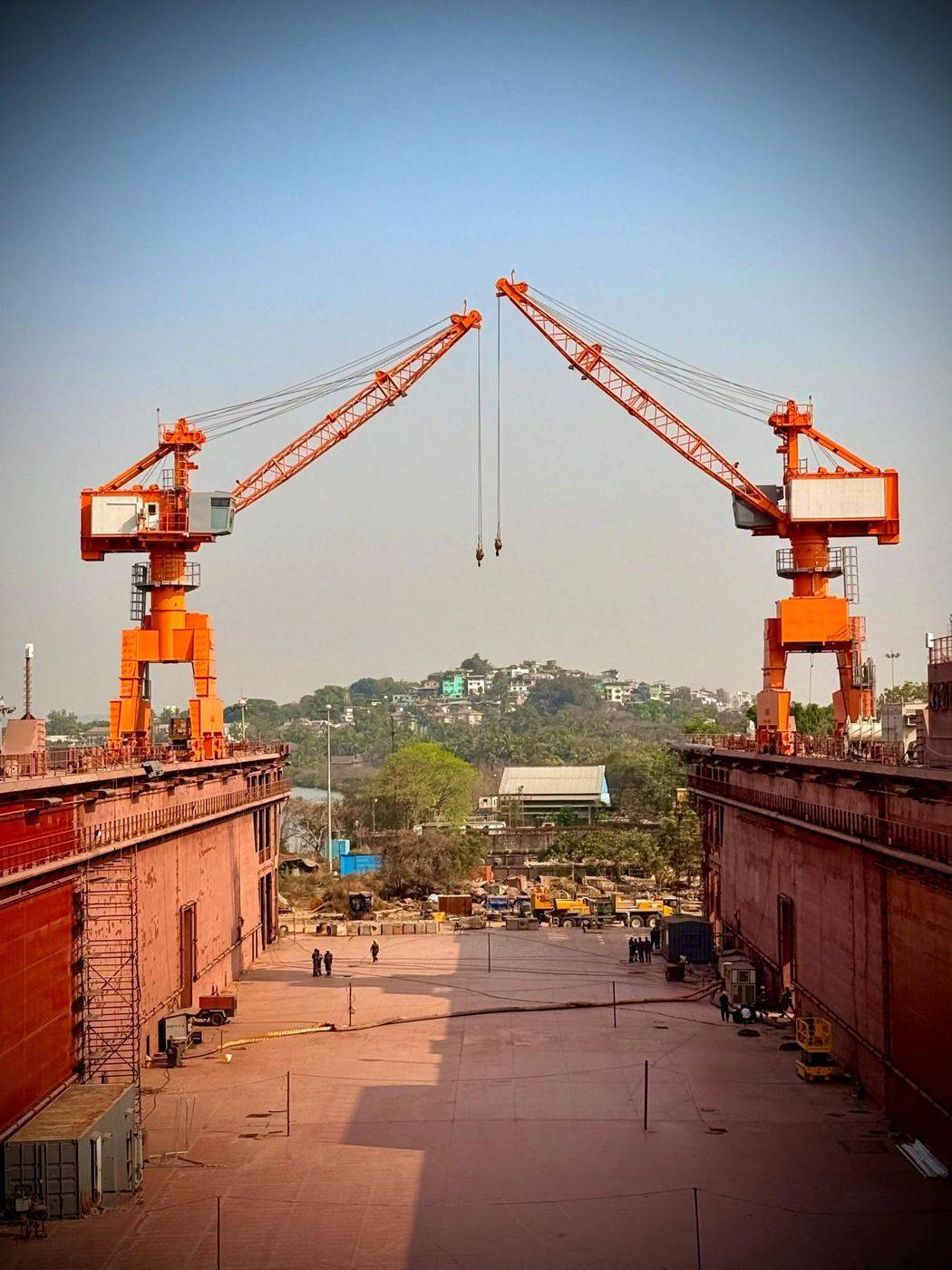

Floating Dock Crane — Portal View
Technical Specifications
| Rail Gauge of Portal Track | 4.7 m |
| Hoisting Speed | 0 – 22 m/min |
| Travelling Speed of Portal | 0 – 25 m/min |
| Slewing Speed | 0 – 1.0 rpm |
| Wheels per Corner | 4 x Ø500 mm |
| Hoisting Capacity | 15t x 20 ... 7 m |
| Safety Factor (Stability) | SWL x 1.6 |
| Safety Factor (Static Load) | SWL x 1.5 |
| Safety Factor (Dynamic) | SWL x 1.25 |
| Electric System | 400V 3ph 50Hz, all movements with inverter duty |
