Project Overview
Kuzey Star Shipyard (KS) is a privately owned shipyard located in Istanbul, Türkiye, specializing in newbuilding and ship repair projects. For its own operations, KS constructed a floating dock with a lifting capacity of 30,000 tonnes. ISKAR designed and supplied two floating dock cranes, each with a lifting capacity of 20 tonnes and an outreach of 25 meters.
ISKAR Mühendislik Ltd. is a solution provider and turnkey contractor specializing in material handling machinery, with particular expertise in slewing dock cranes. ISKAR delivers innovative engineering solutions and state-of-the-art, custom-engineered cranes designed to meet each customer's specific requirements.
ISKAR Mühendislik is a global supplier of dock cranes and engineering services for material handling systems across ports, shipyards, and jetties.

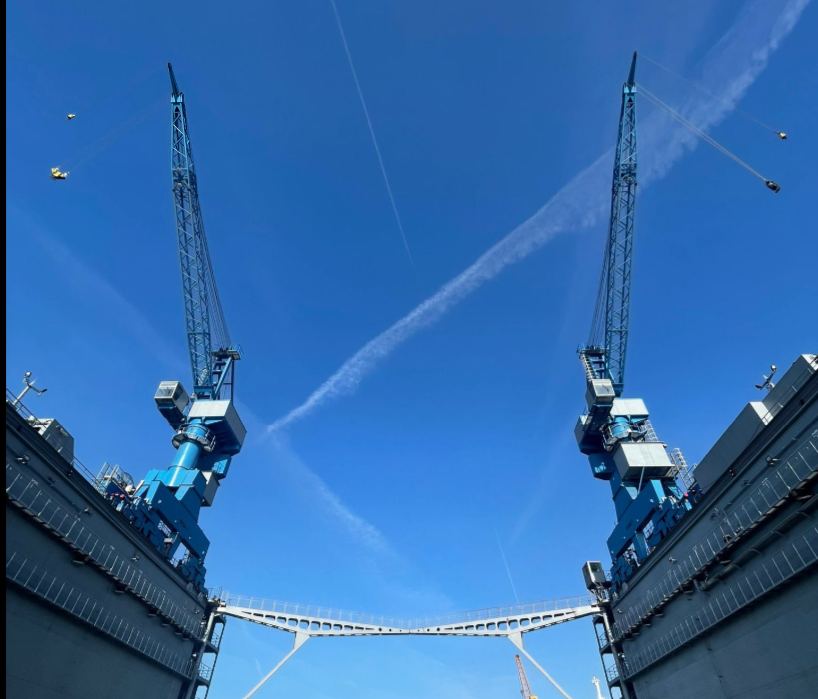

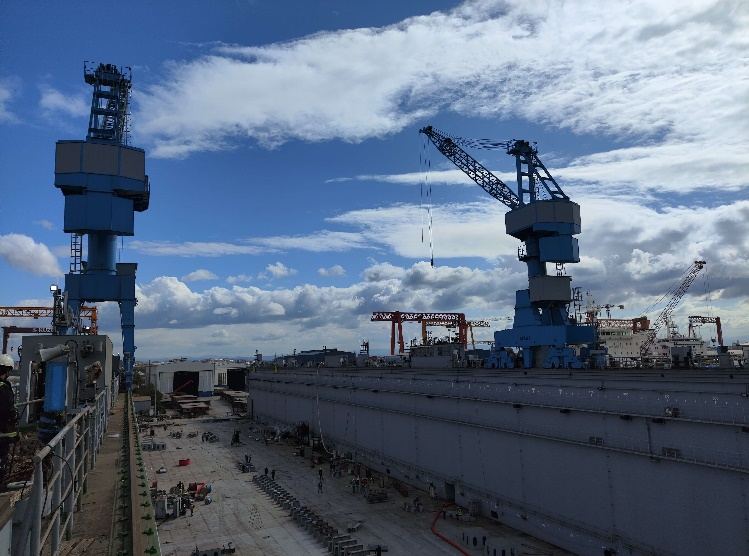

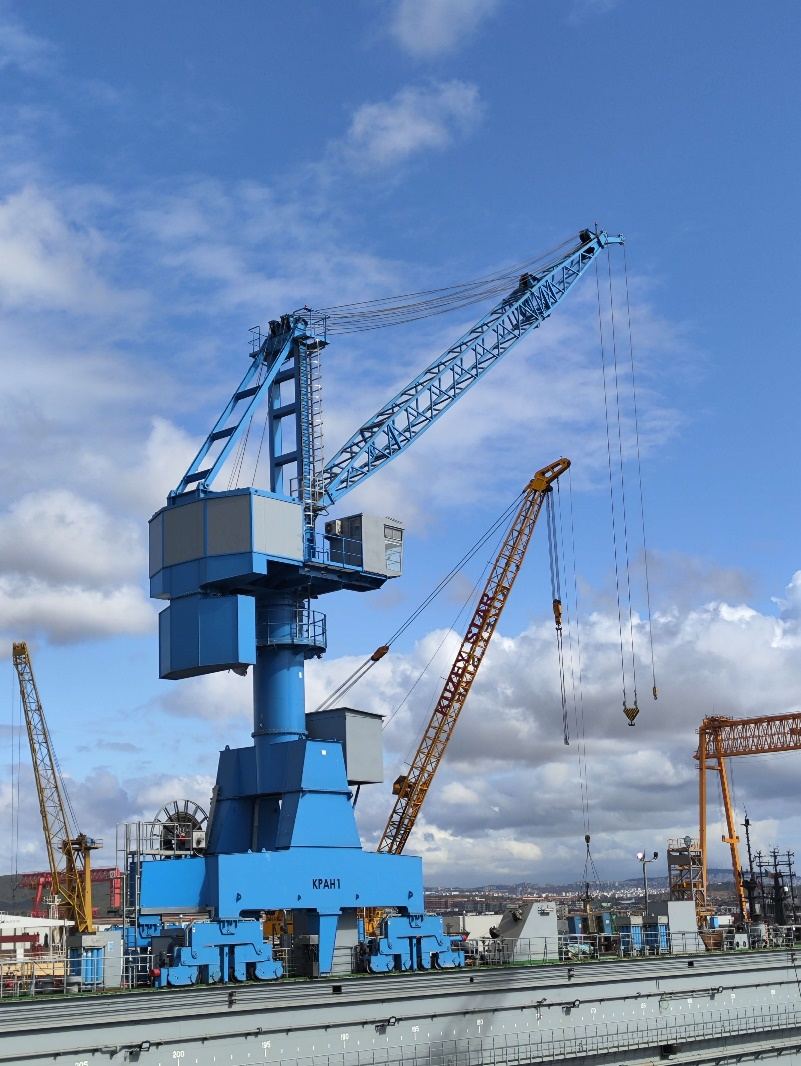

Kuzey Star Floating Dock Cranes
Technical Specifications
| Rail Gauge of Portal Track | 4.2 m |
| Hoisting Speed | 0 – 30 m/min |
| Travelling Speed of Portal | 0 – 30 m/min |
| Slewing Speed | 0 – 1.0 rpm |
| Wheels per Corner | 6 x Ø500 mm |
| Hoisting Capacity (main hook) | 15/20t x 27/20 … 11 m |
| Hoisting Capacity (aux hook) | 5t x 29 … 12 m |
| Safety Factors | SWL x 1.6 (Stability), SWL x 1.5 (Static Load), SWL x 1.25 (Dynamic) |
| Electric System | 400V 3ph 50Hz, all movements with inverter duty |
| Total Weight | 90 tons |
