Project Overview

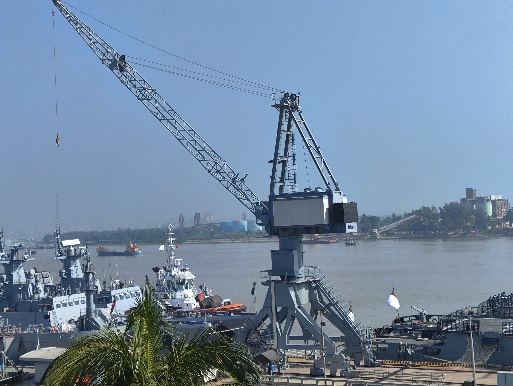

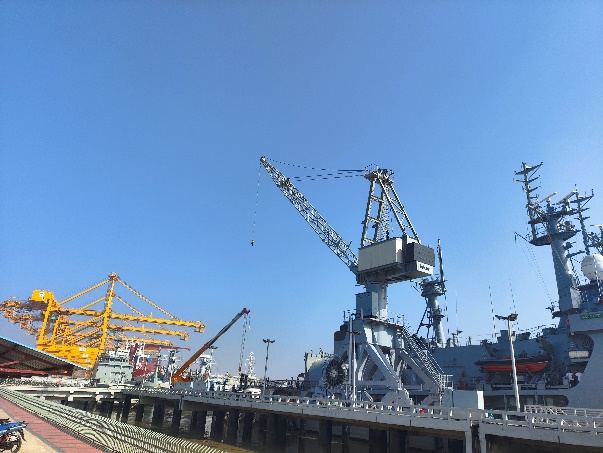

CSD (Issa Khan) is a Bangladesh Navy dockyard located at the Chattogram Naval Base, one of the largest naval bases in Bangladesh. As part of the new jetty development project, ISKAR supplied a hook-duty slewing crane featuring a lattice boom and curved traveling system.
Shipyard Crane at Commodore Superintendent Dockyard
Technical Specifications
| Rail Gauge of Portal Track | 5.283 m |
| Hoisting Speed | 0 – 40/15 m/min |
| Travelling Speed of Portal | 0 – 25 m/min |
| Slewing Speed | 0 – 1.0 rpm |
| Wheels per Corner | 5 x Ø500 mm |
| Travelling on Curved Track | Yes |
| Hoisting Capacity | 6t x 25 ... 7.5 m |
| Safety Factor (Stability) | SWL x 1.6 |
| Safety Factor (Static Load) | SWL x 1.5 |
| Safety Factor (Dynamic) | SWL x 1.25 |
| Electric System | 400V 3ph 50Hz, all movements with inverter duty |
| Total Weight | 165 tons |
