Project Overview
Khulna Shipyard (KSY) operates under the Bangladesh Navy, specializing in new vessel construction and maintenance services for the Navy.

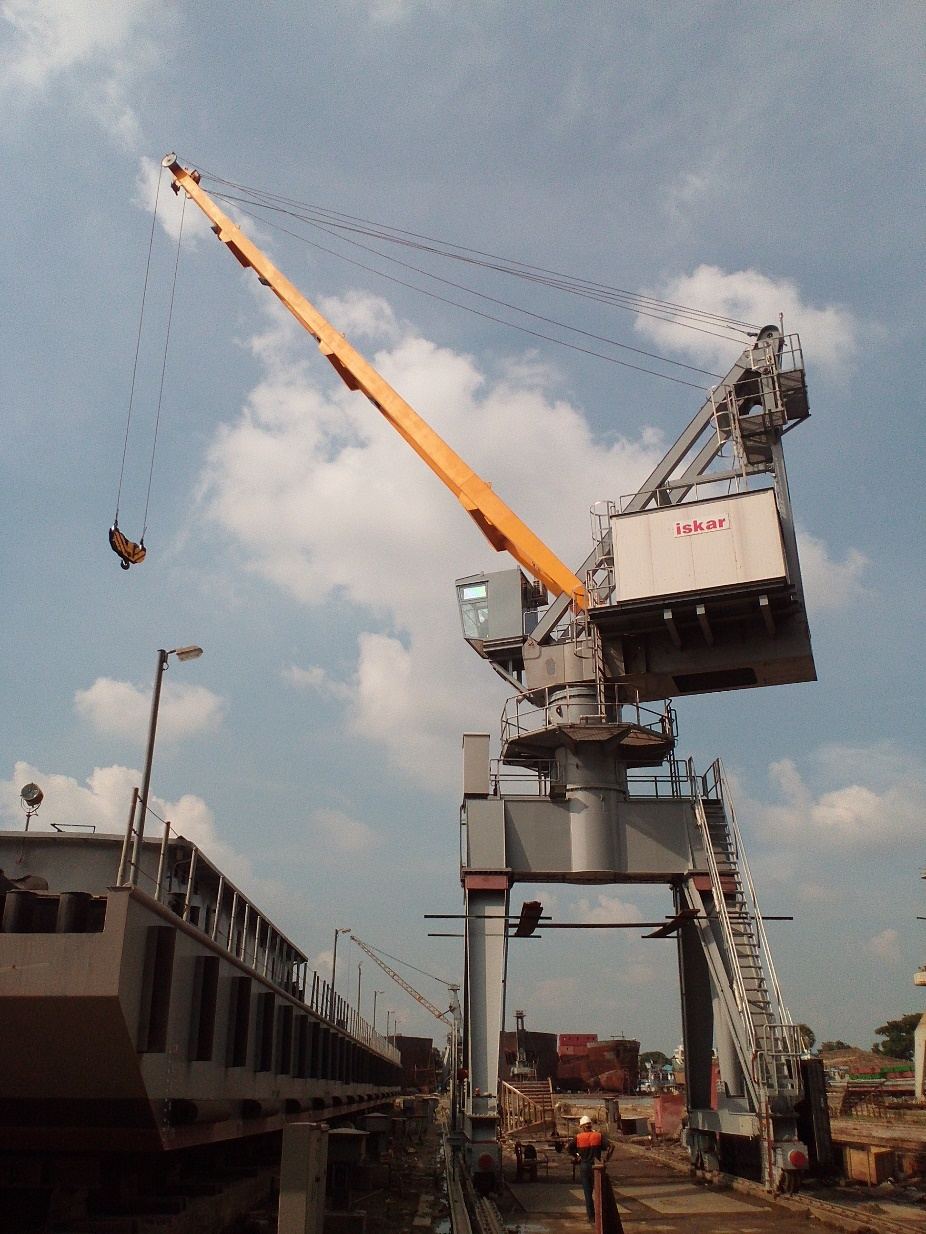

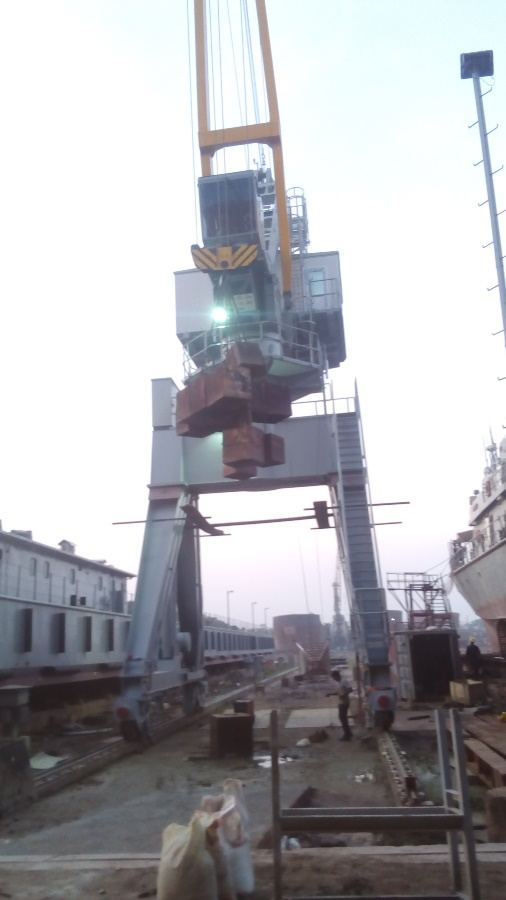

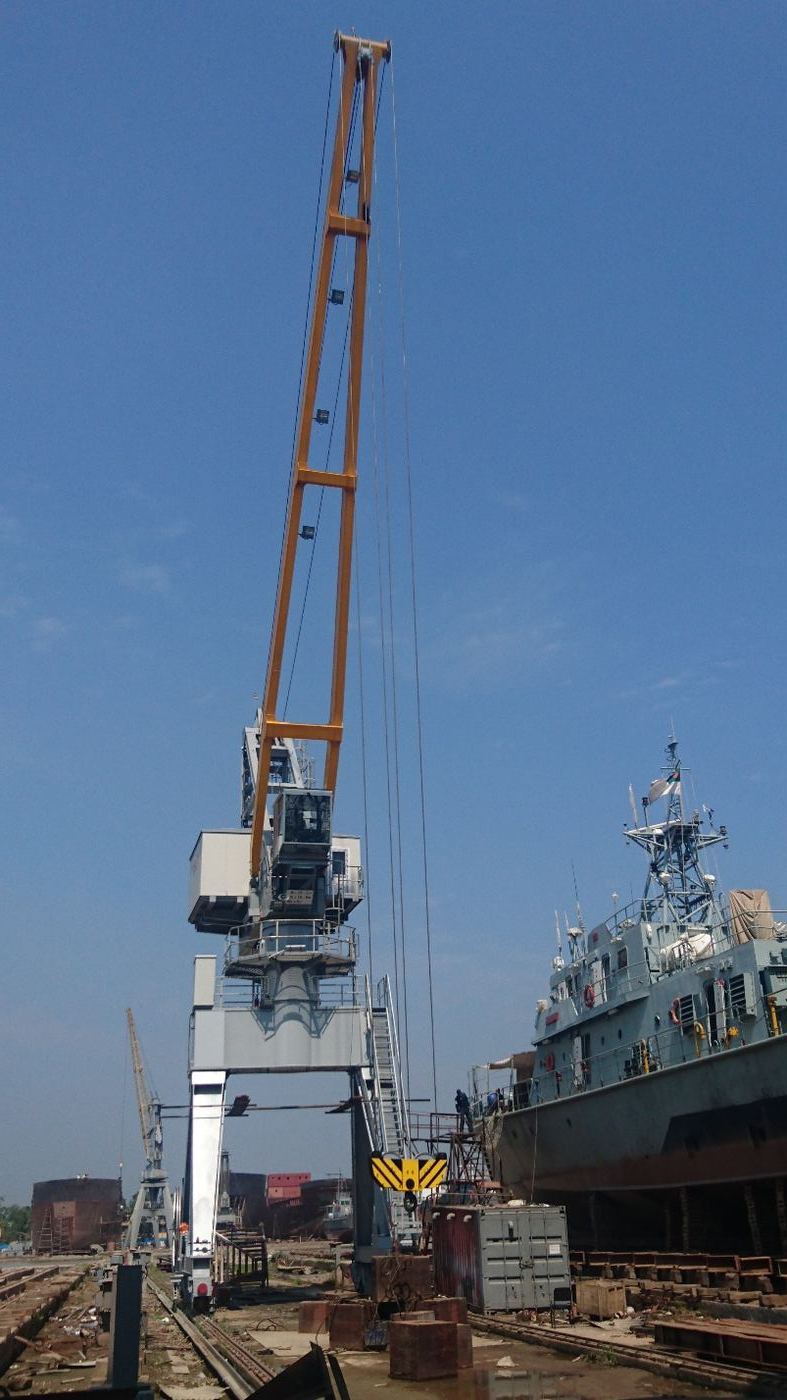

Dock Crane at Khulna Shipyard
Technical Specifications
| Rail Gauge of Portal Track | 6.0 m |
| Hoisting Speed | 0 – 20 m/min |
| Travelling Speed of Portal | 0 – 25 m/min |
| Slewing Speed | 0 – 1.0 rpm |
| Wheels per Corner | 2 x Ø630 mm |
| Hoisting Capacity | 40t x 5 m / 5t x 25 m |
| Safety Factor (Stability) | SWL x 1.6 |
| Safety Factor (Static Load) | SWL x 1.5 |
| Safety Factor (Dynamic) | SWL x 1.25 |
| Electric System | 400V 3ph 50Hz, all movements with inverter duty |
| Total Weight | 90 tons |
